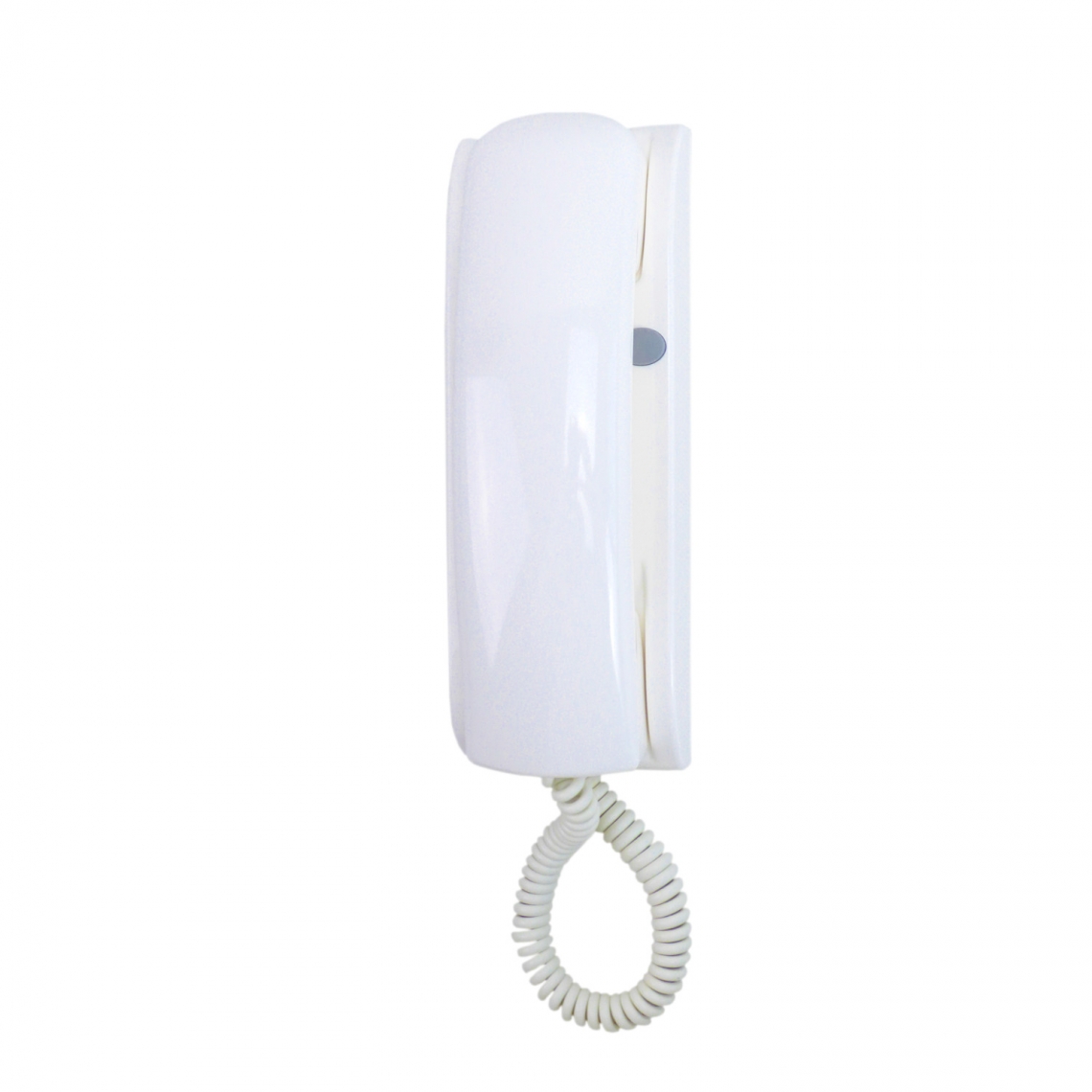

Analogue white intercom. Suitable for 4+1 audio systems with alternate current or electronic call.
Complete with electronic microphone, buzzer, spiral cord and 2 buttons expandable up to 10 for door-lock release, intercommunicating calls and other services. For the additional buttons use the PT501G article.
Project series intercom with door-lock release button, spiral cord, electronic microphone and electronic call. The secret conversation module can be installed.
Twisted pair wire for Duo System for external, with single section 1 mmq.
External diameter: mm. 6.0 (+/- 0.1) mm.
Rated voltage Uo/U: 300/500 VTest voltage: 3000 vBending radius: 15 times the diameter of the cable
500 m reel.

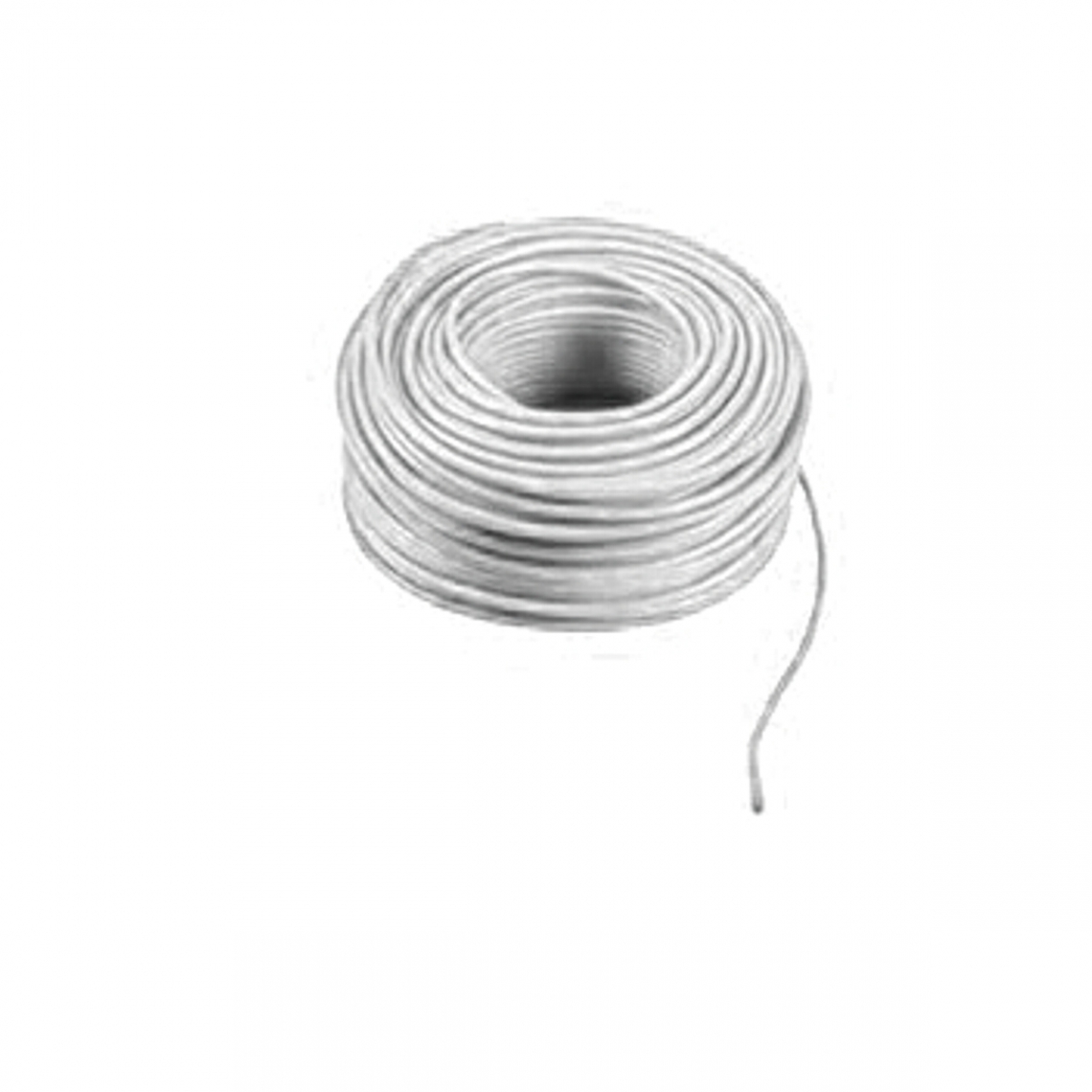

Twisted pair wire for Duo System for internal, with single section 1 mmq. 500 m reel.

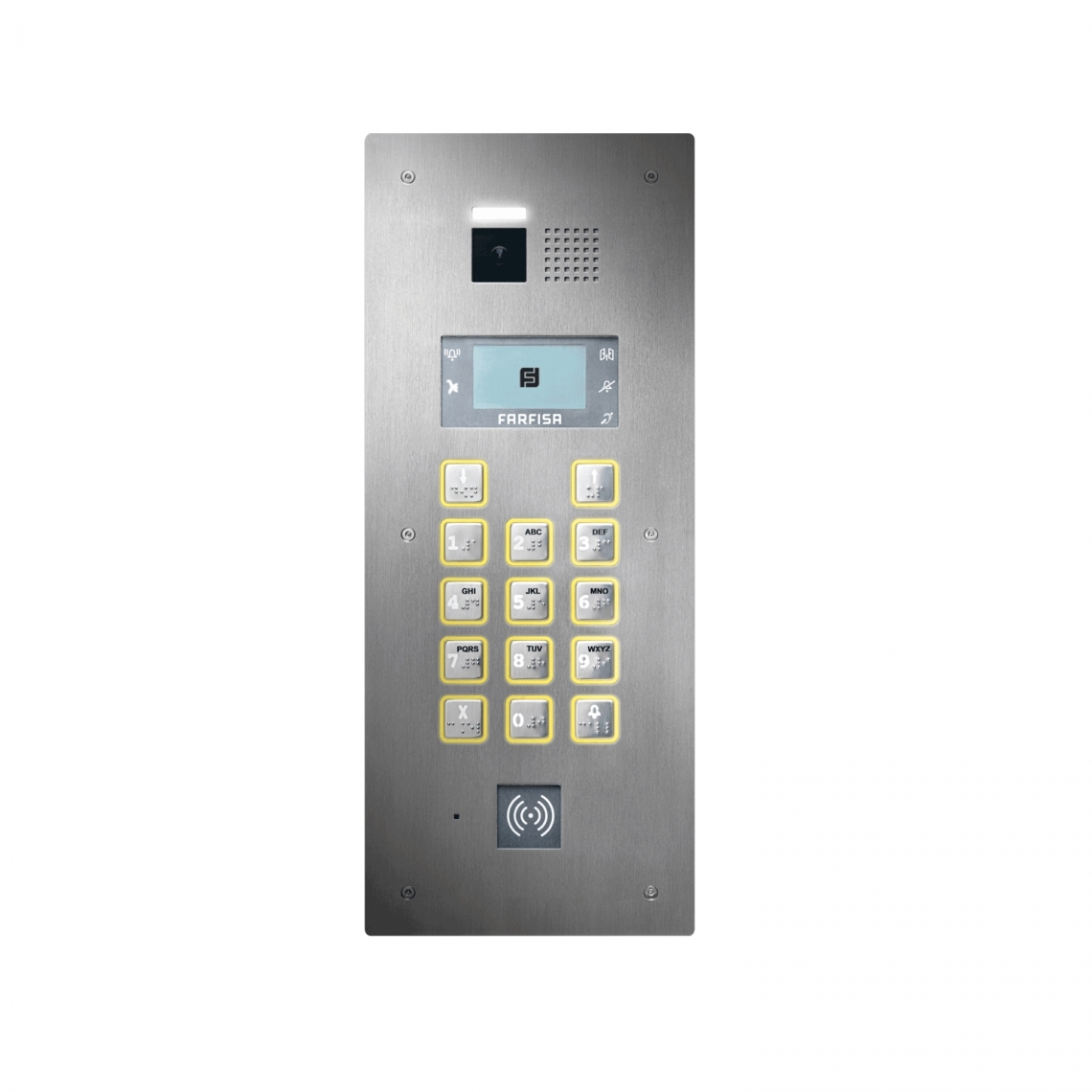

Complete video door entry panel with digital call. It works for Duo Systems powered by bus. It is ready for integration of a proximity reader. The internal directory can manage up to 500 users and their passwords, but thanks to "extended range DUO" support it can manage up to 20,000 calls in wide systems. With plate and 14 keys made of marine-grade 316L stainless steel, Hero is secured by 6 security Torx screws and is installed with flush mounting box of 61 mm depth already included. It is equipped with wide angle camera, antenna loop for hear impaired devices, big backlit buttons and numbers in Braille, blinking icons and multilanguage voice prompt for a more immediate system staus identification. 3 inputs for exit button, trade or direct call; 2 independent outputs: 1 for electric lock and 1 with realy for automatic gate or other lock. Programming can be done via Blutooth, with the Duo System app for iOS and Android or through integrated digital keyboard. Adding XE2922 board it is possible to display current date / time and enable access control functions by PIN and schedules.
Internal bus expansion board, allows integration of Bluetooth technology in the door stations Alba or Hero series for easy system programming via "DUO System" app. It allows access control simply via smartphone with dedicated apps (Farfisa Smart Access and Farfisa Smart Dial), available for free on App Store and Play Store. With Farfisa Smart Access, you can open the lock via virtual keyboard and personal numeric code or with a simple screen touch, in case the smartphone has been previously associated with the device. It can be used as an alternative to the proximity reader module. As regards Farfisa Smart Dial the smartphone acts as door panel to effect the call, in order not to get in touch with external stations. Both apps are part of the "notouch / nocovid-19" project with which solutions are offered in order to contain the covid-19 pandemic.
One-way video intercom kit based on 2 wires, not polarized technology with integrated access control feature. Wi-Fi connected. Ready and complete to be installed, it is made up of: monitor, entry door station, power supply.
Monitor: 7" LCD-TFT, hands free, white color, with touch screen feature and soft touch buttons. It delivers good audio quality and very user friendly operation. The monitor and system programming can be done by multi language OSD menu with icons which allows also to program date and time, select call chime for door bell, external call and intercommunication among different tones and choose different volumes for the call ring during night and day. Moreover the system can automatically record a picture of the caller or, adding an optional SD card, a 10 seconds video footage.
Entry door station: is robust (IP45) and compact, it is also featured with touch sense keypad and multi colour back lighting: special care has been put on the design for a modern and nice appeal. It provides access control features allowing to program up to 40 code passwords for door unlock. It is suitable for surface mounting and the name plate is even blue back lighted.
It can also drive a door lock (DC or AC). The system power supply is a DIN rail type. It is possible to install an additional monitor into the same apartment (art. SEM7ME as "slave") and the intercommunicating facility also available. Other accessories: wall bracket for monitor, sun shield for external station and fixing accessories.

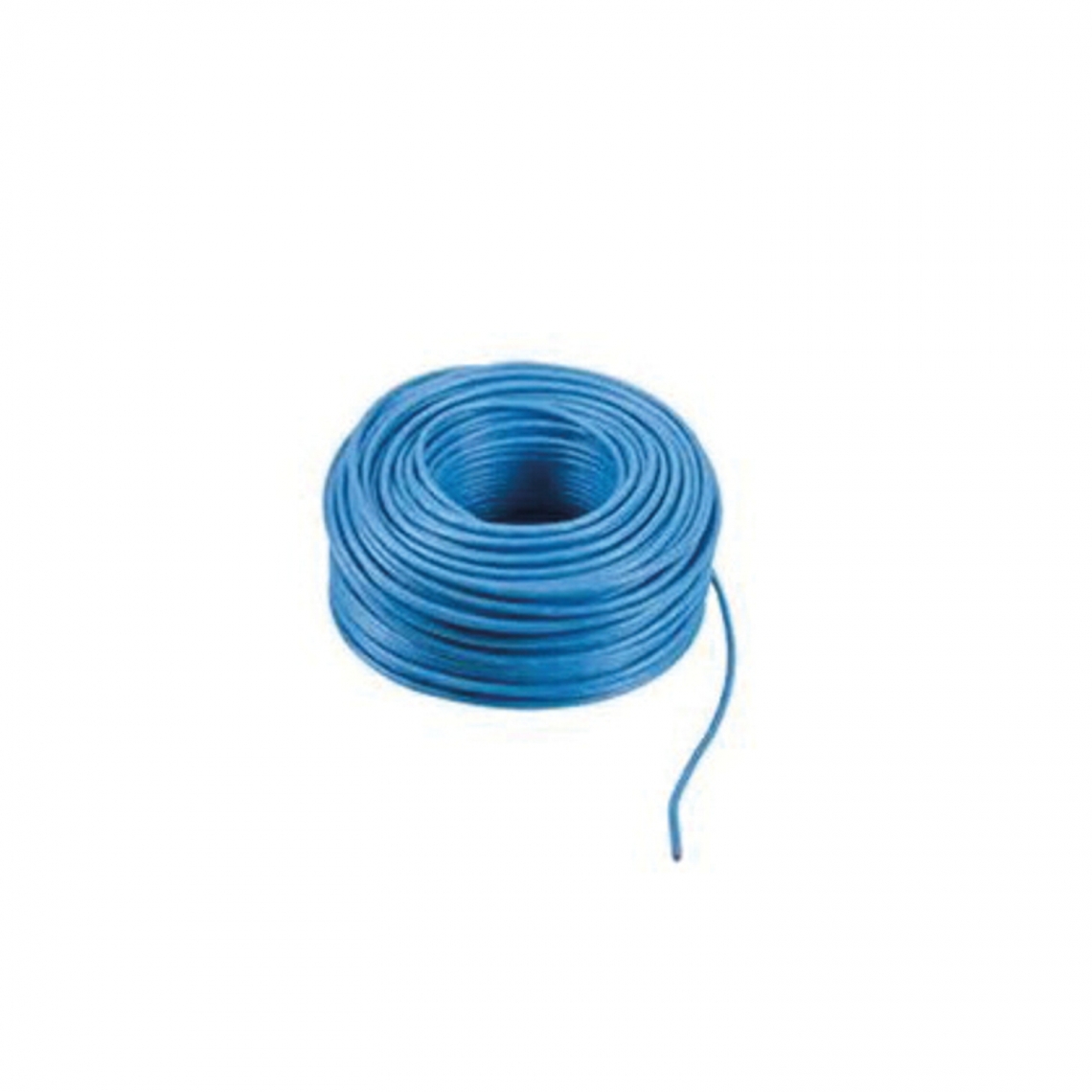

Twisted pair wire for external for Duo System installations with single section 1 mmq.
External diameter: mm. 6.0 (+/- 0.1) mm.
Rated voltage Uo/U: 300/500 VTest voltage: 3000 vBending radius: 15 times the diameter of the cable
100 m reel.

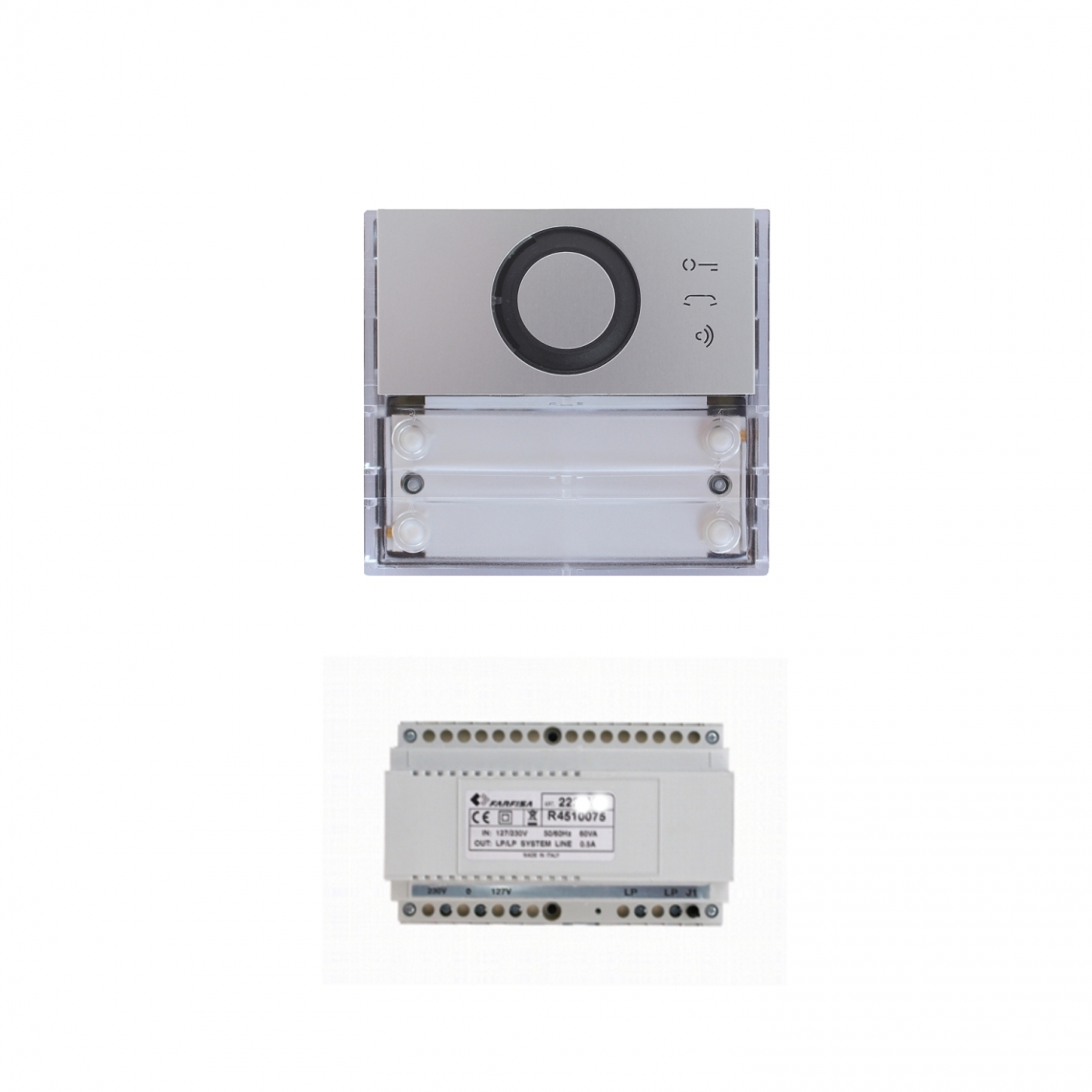

Basic installation audio kit with audio door panel Alba series and 2221MQ power supply. Not provided with internal stations, it can be extended with additional buttons modules and Farfisa intercoms Duo technology to get a complete audio multi-way system. Included with 1 AB20(single button blank module)and 2 AB21 (single or double call button). SCx / AB9x / AB8xS boxes, AB7x module frames and AB6x front frames to be selected depending on the composition of the door panel.
Basic installation videokit composed by video door panel Alba series and 2221MQ power supply. Not provided with internal stations, it can be extended with additional button modules and Farfisa videointercoms Duo technology, to have a complete multi way video system.
1 AB20(single button blank module)and 2 AB21 (single or double call button). SCx / AB9x / AB8xS boxes, AB7x module frames and AB6x front frames to be selected depending on the composition of the door panel.
