External antenna, complete with coaxial cable and proper connector in MyCom systems (GSM 4G), provided with wall bracket in metal. It is useful in all the situations when the signal is weak.

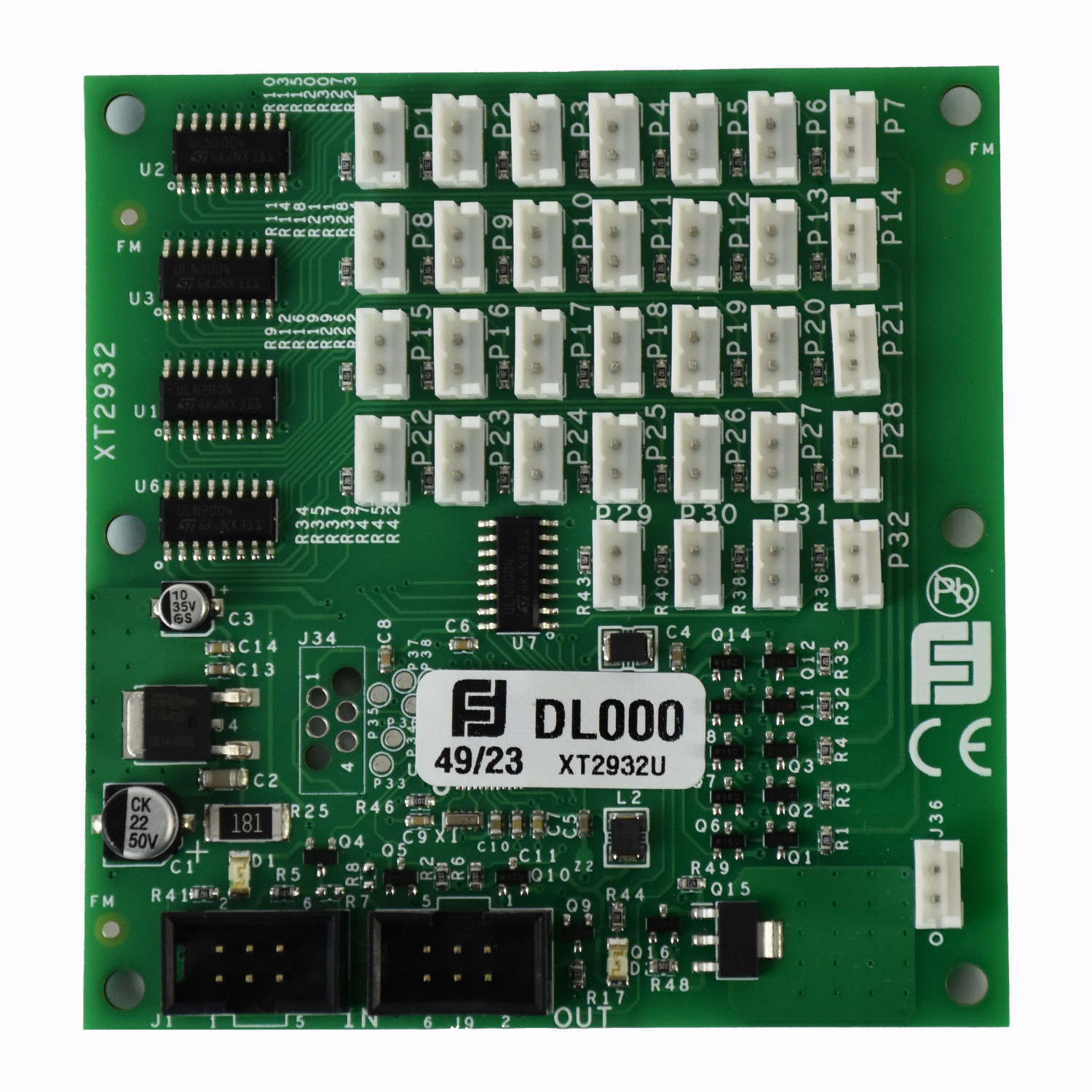

Interface board that allows to connect any analog entry door panel to Alba or Hero modules. Each board allows to connect max 32 buttons and it is possible to connect a further board in cascade.
Main module for entry door panel in Mycom systems with 4G technology. In Alba range, it works with Alba installation elements. Standalone or in composition with expansion modules, if installed with power supply only, it allows a complete and reliable system for access control with no cables and no distance limits.
Audio module on Alba range with electrical door speaker integrated in 4G technology and ready for max 4 calls in double button mode. The call is made by the external panel by using the mobile net (a nano SIM card is necessary but not included) and can be sent to max 3 fixed or mobile telephone numbers, programmable in sequence for each call button. Up to 2 ouputs through the provided relays can be managed separately, for example for a pedestrian door and a gate for vehicles. This item is the ideal solution for an installation without distance limit between external panel and internal station, absolutely without cabling. It can be connected through Alba bus to CT2138AB button module, with total 68 buttons or through digital keypad PD2100AB and/or display DD2140AB for up to 200 users. 2 alarm entrances. Function "calling number recognition for door lock opening (CLIP) through call or SMS for all the users already inside Conctacts plus further 200 telephone numbers, alarm management and NAC function (signal for attempted use clip function by a non-authorized user).
Programming is made through web interface, app, PC with MyComManager software or SMS. Lighting signals for conversation status indications, relay activation, subscription to telephone net, signal intensity. To be completed with AB20 or AB21, depending on the number of calls to use.

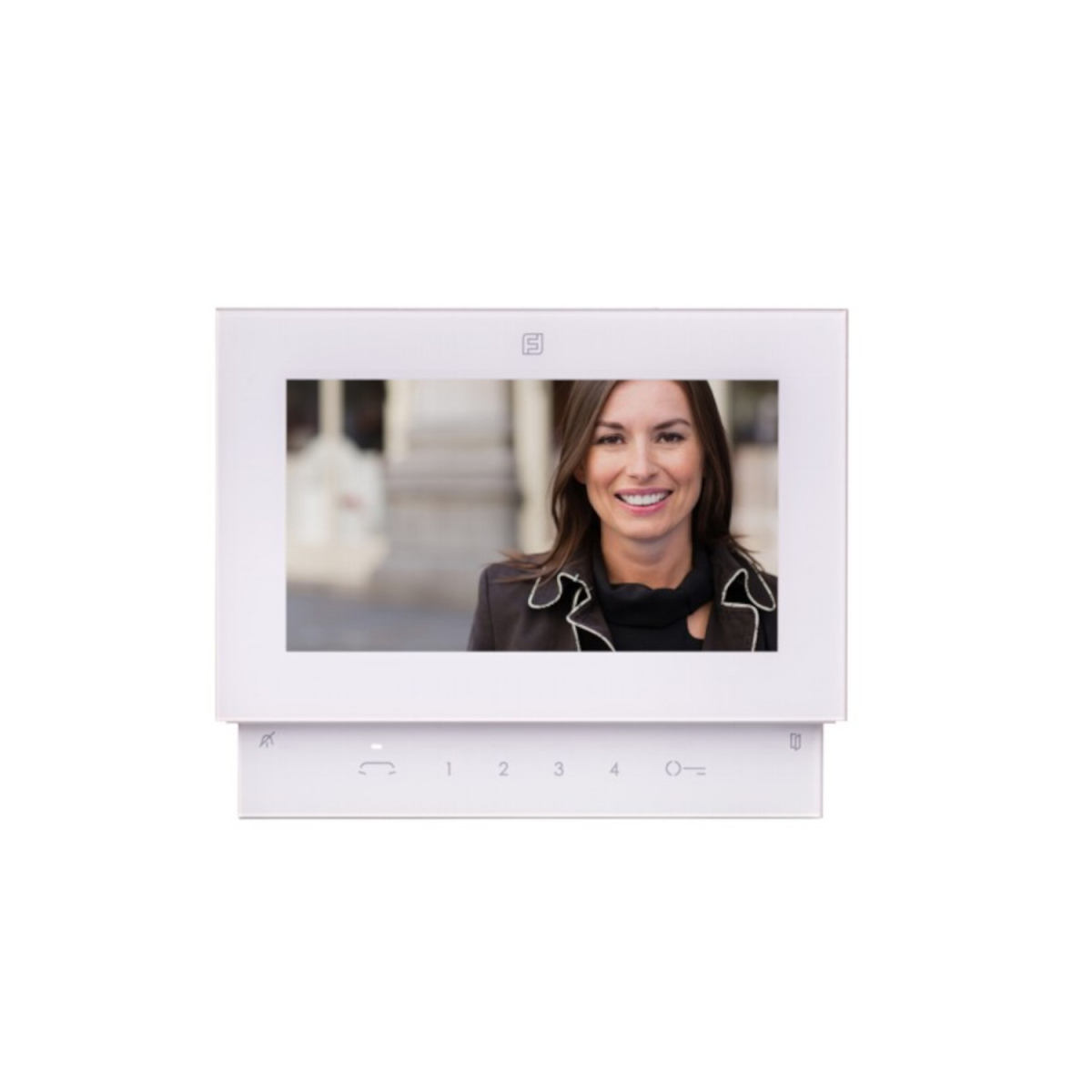

Hand-free vidoeintercom with LCD 7" screen for IP EVO systems, it allows to add a phisical videointercom station to the system. Provided with 6 soft touch buttons and backlit icons.
EVO IP technology allows the management of up to 8 devices for each residential unit (including one or more SE4000 video intercoms, smartphones, Alexa), the display and reception of calls from multiple external door panels, simultaneous audio/video calls, bidirectional communication and control of all door panel outputs.
Ethernet connection or WiFi, automatic connection to Farfsa cloud: The device is linked to the residential unit by simply scanning a QR code.
Provided with dedicated chip for high level of IT security system.
One user licence for a residential unit iis ncluded.
Power via PoE or 13 Vac.
Rain shelter made in steel for the surface mounting of Connecto entry door panel, art. TD1000CN and for the Solvo TD2000RL and TD2000RAL. It allows the installation where the built-in is not required, it allows to guarantee the necessary solidity and mounting easiness
Additional module up to 8 calls in Alba line, for Pluggy Plus technology. To be joint, if more than 4 expansions, to the video door panel included into 1SEPG+ videokit, to be completed with the corresponding mounting elements. Max 2 pcs each installation to get the max expansion of 20 users.

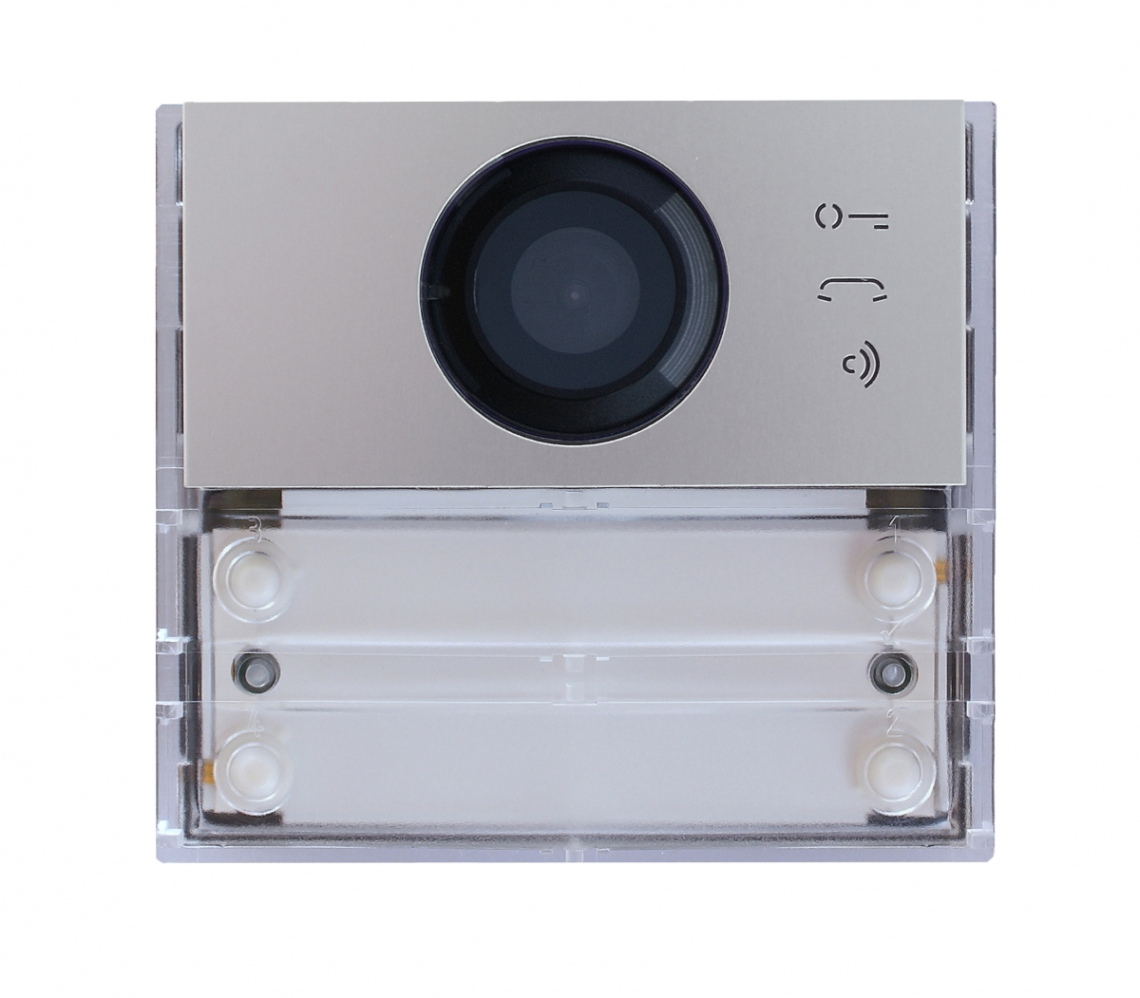

Audio-video module (new version), Alba door station line. Provides voice prompt function multi-language, which you can activate and manage via Bluetooth. It includes electric door speaker and wide angle camera, ready for the installation of 1 or 2 buttons (art. AB20 or AB21) up to 4 calls if programmed in double-call way. To be completed with item AB21 or AB20.
It works on Duo System for installations up to 20.000 users and 250 m as max distance between door station and internal station. It is self powered with automatic address learning.

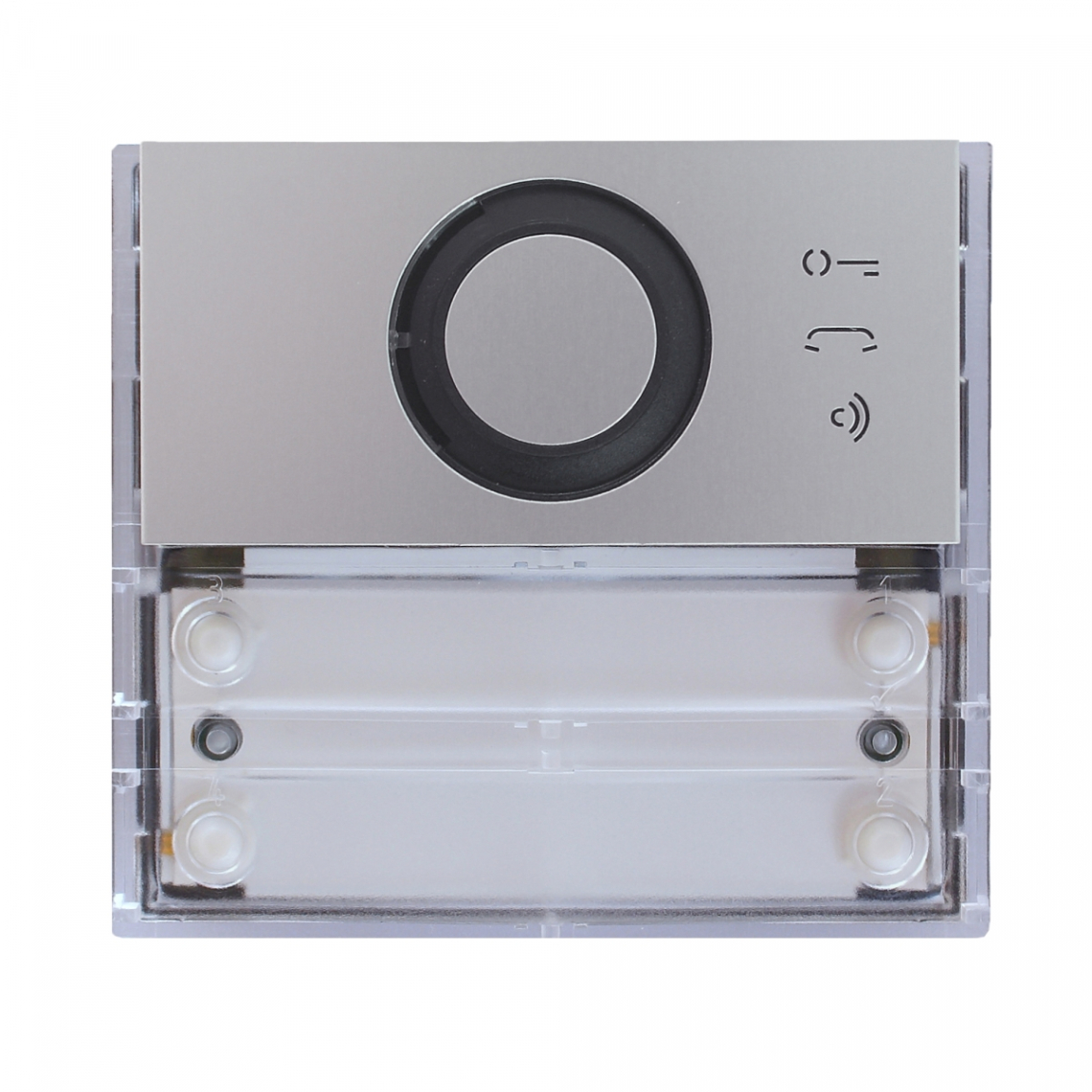

Audio module (new version) for Alba entry door station line. It provides voice prompt function, multi-language, which you can activate and manage via Bluetooth. It includes electric door speaker and it is ready for the mounting of 1 or 2 buttons (art AB20 or AB21) up to 4 calls if programmed in double call way. To be completed with article AB20 or AB21. It works with Duo Systems for installations up to 20.000 users and 250 m as max distance between door station and internal station. It is self powered with automatic address learning.
Microphone extremely protected against external atmosphere agents, implemented microchip in audio section with marked improvement of the audio performance. Name tags made in resistant material.
Licence 100 users for IP EVO system through QR code.
Licence 50 users for IP EVO system through QR code.
