TVT73FAHD/5

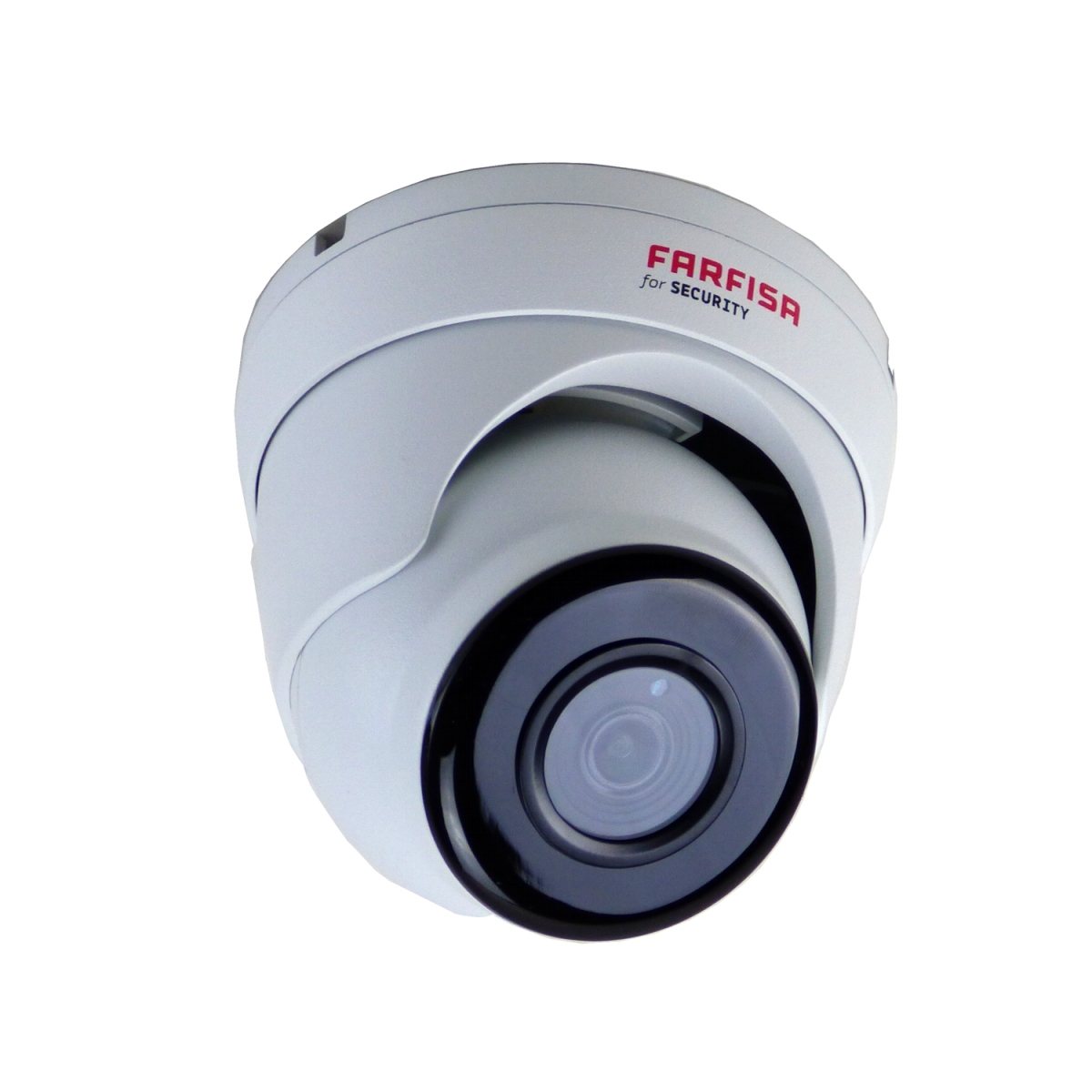

5MP MINI DOME AHD CAMERA - TVT73FAHD/5
Mini dome Day&Night camera with 3.6mm fixed lens and waterproof case (IP66). The new capturing sensor solution CMOS 1/2.7" of 5.0MP and AHD technology allows pictures of highest resolution and compatibility with traditional coaxial cable transmistion. The 18 IR led and ICR filter removable guarantee optimal picture even in low light conditions. For correct picture displaying and recording it is recommended to connect this camera to video recorders able to support AHD 5MP signals such as HVR42/5, HVR82/5, HVR162/5. the video output of this camera can be switched among AHD / TVI / CVI and analogue (4in1 function).
DOWNLOAD
CERTIFICATIONS
DOWNLOAD
DOWNLOAD
MAIN
CHARACTERISTICS
material: aluminum
mounting
wall mounting: wall / ceiling
wall mounting: wall / ceiling
colour: White
IP degree: IP66
camera type: CMOS 1/2.7" sensor
resolution: 2592x1944 pixel
sensitivity: 0.01lux
lens: fixed
focal lenght: 3.6mm
FUNCTIONS
TECHNICAL
FEATURES
supply voltage: 12Vdc
max current consumption: 500mA
