OUT OF PRODUCTION
TVT86FAHD/5

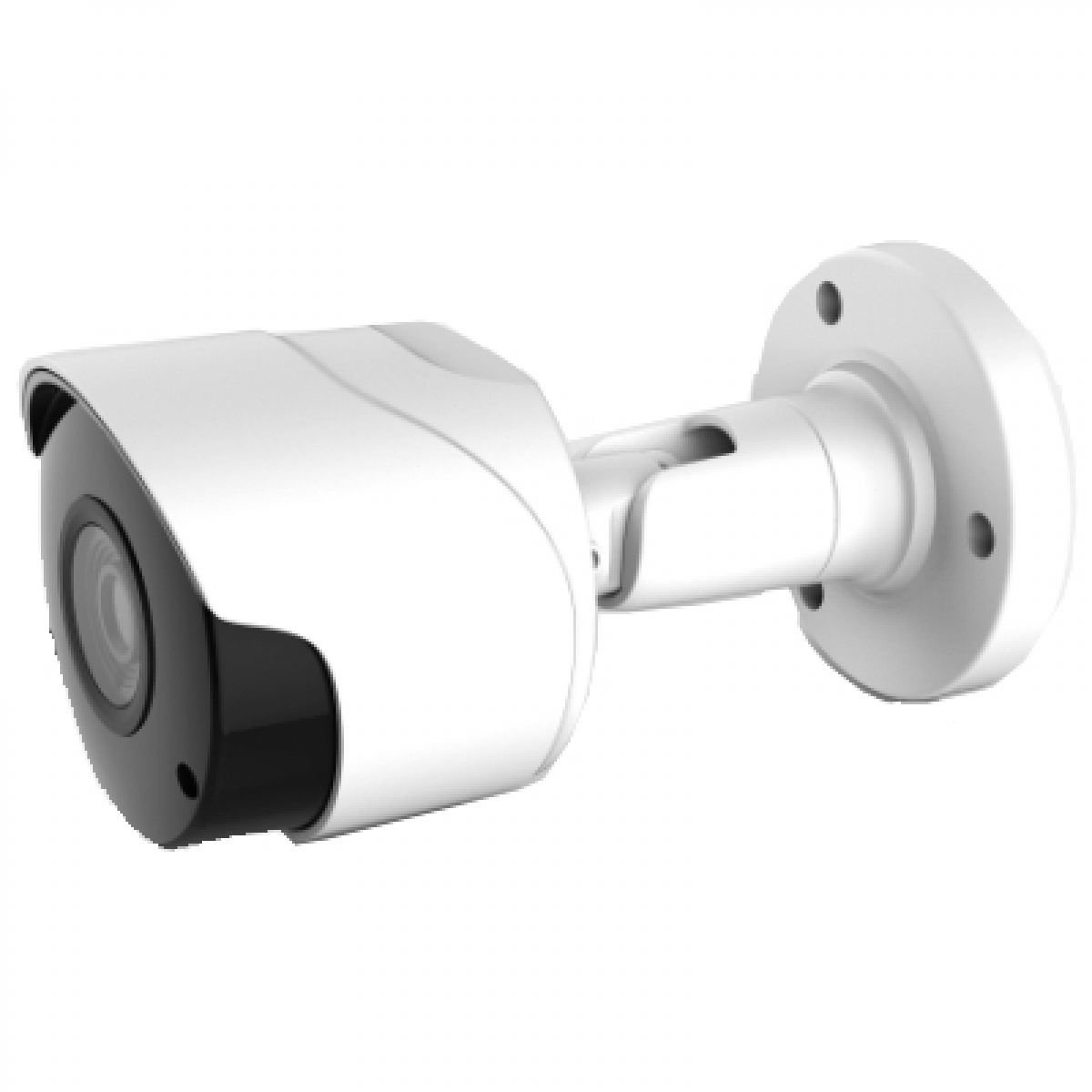

AHD BULLET CAMERA FIXED LENS - TVT86FAHD/5
Mini bullet Day&Night camera with 3.6mm fixed lens and waterproof case (IP66). The new CMOS sensor 1/2.7" of 5MP resolution and the improved version of AHD technology provide pictures of highest resolution even by traditional coaxial cable trasmission. The 18 IR led's and removable ICR filter guarantee a good picture quality even in low light conditions. This camera's video output can be switched among AHD/CVI/TVI and CVBS signals. For correct picture display and recording it is recommended to use video recorder able to support up to 5MP AHD signals. Product not available any more.
DOWNLOAD
CERTIFICATIONS
DOWNLOAD
DOWNLOAD
MAIN
CHARACTERISTICS
material: Aluminium
mounting
wall mounting: Wall/ceiling
wall mounting: Wall/ceiling
colour: white
IP degree: IP66
camera type: Sensor CMOS 1/2.7"
resolution: 2592x1944 (5MP)
sensitivity: 0.01lux
lens: fixed
focal lenght: 3.6mm
FUNCTIONS
TECHNICAL
FEATURES
supply voltage: 12Vdc
max current consumption: 500mA
DIMENSIONS
height cm. 7,2
depth cm. 14,1
