Brand new IP ONVIF camera with "fish eye" wide angle lens which allows to capture pictures at 360° from a single point. Thanks to the 5 Megapixel sensor, it allows high definition pictures, while the new H.265 compression allows the stream transmission through the network with a minimum bandwidth requirement. It has 3 independent stream that can be configured for various applications, moreover Privacy areas, e-mail sending up on event, motion detection and intelligent video analysis (line crossing detection, perimeter intrusion detection, left object detection,...) can be programmed. The particular picture control allows the management of the shooting area to display, for example, a certain point only, panorama views, PTZ views and so on. The surveillance is guaranteed even under low light conditions thanks the 3 IR leds and mechanical ICR filter removable. The cofiguration can be done via web browser or even by compatible recorder (for this reason NVR442K, NVR42K, NVR882K, NVR82K are suggested). The camera has also a uSD port for memory card enabling the local recording. Suitable also for outdoor installation (IP66).


INFO
request information

VIEW
dynamic pdf

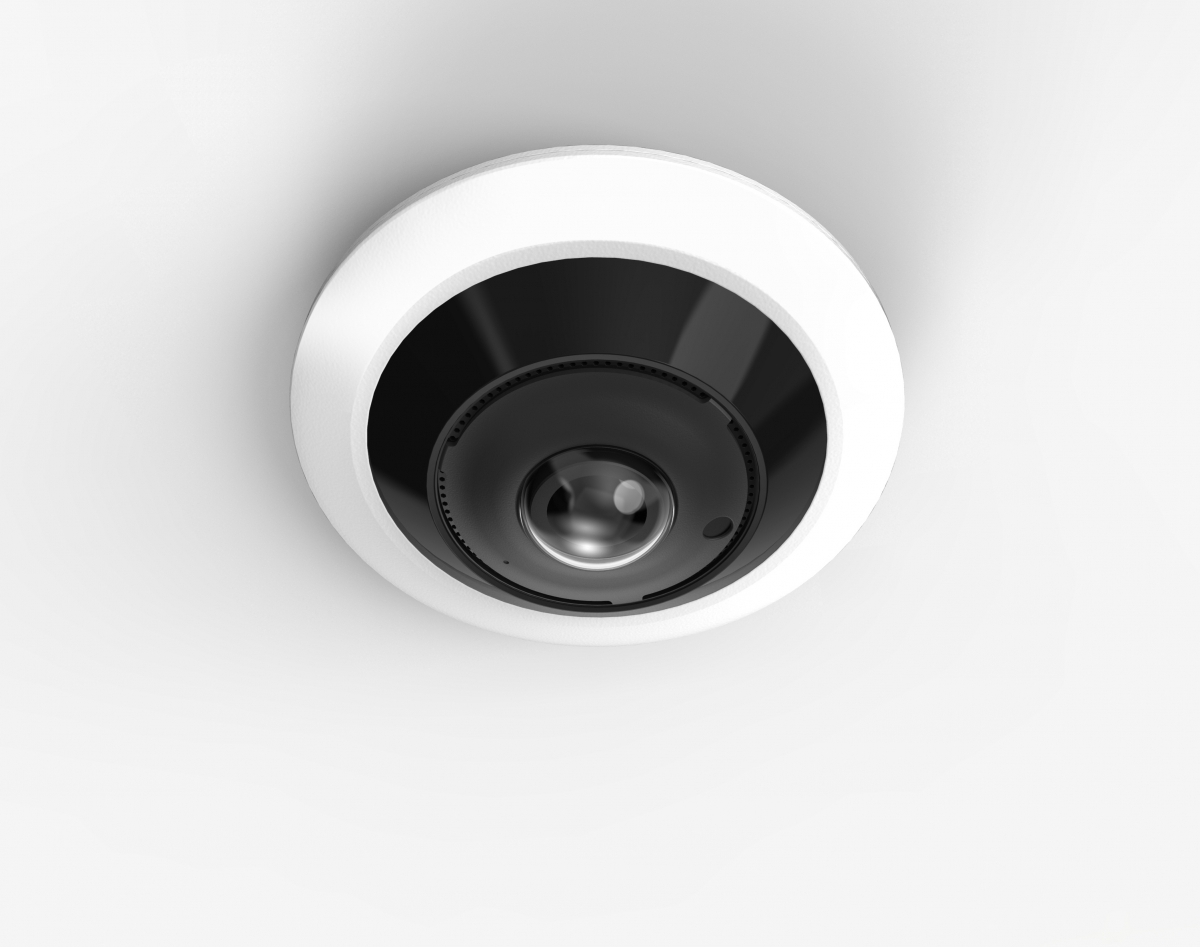

IP FISH EYE DOME CAMERA 5MP - TVT55NF

DOWNLOAD

CERTIFICATIONS
DOWNLOAD
SHORT MANUAL
DOWNLOAD

MAIN
CHARACTERISTICS

material: Aluminium
mounting
wall mounting: ceiling / wall / desktop / tilt
colour: White
alarm input: 1
alarm output: 1
IP degree: IP66
camera type: CMOS OV sensor
resolution: 2160x2160 (5MP)
sensitivity: 0.1 lux
vision angle: 360°
lens: fixed
focal lenght: 1.1mm

FUNCTIONS

TECHNICAL
FEATURES

supply voltage: 12Vdc/PoE
max current consumption: 700mA

DIMENSIONS

height cm. 6,0
width cm. 12,0
